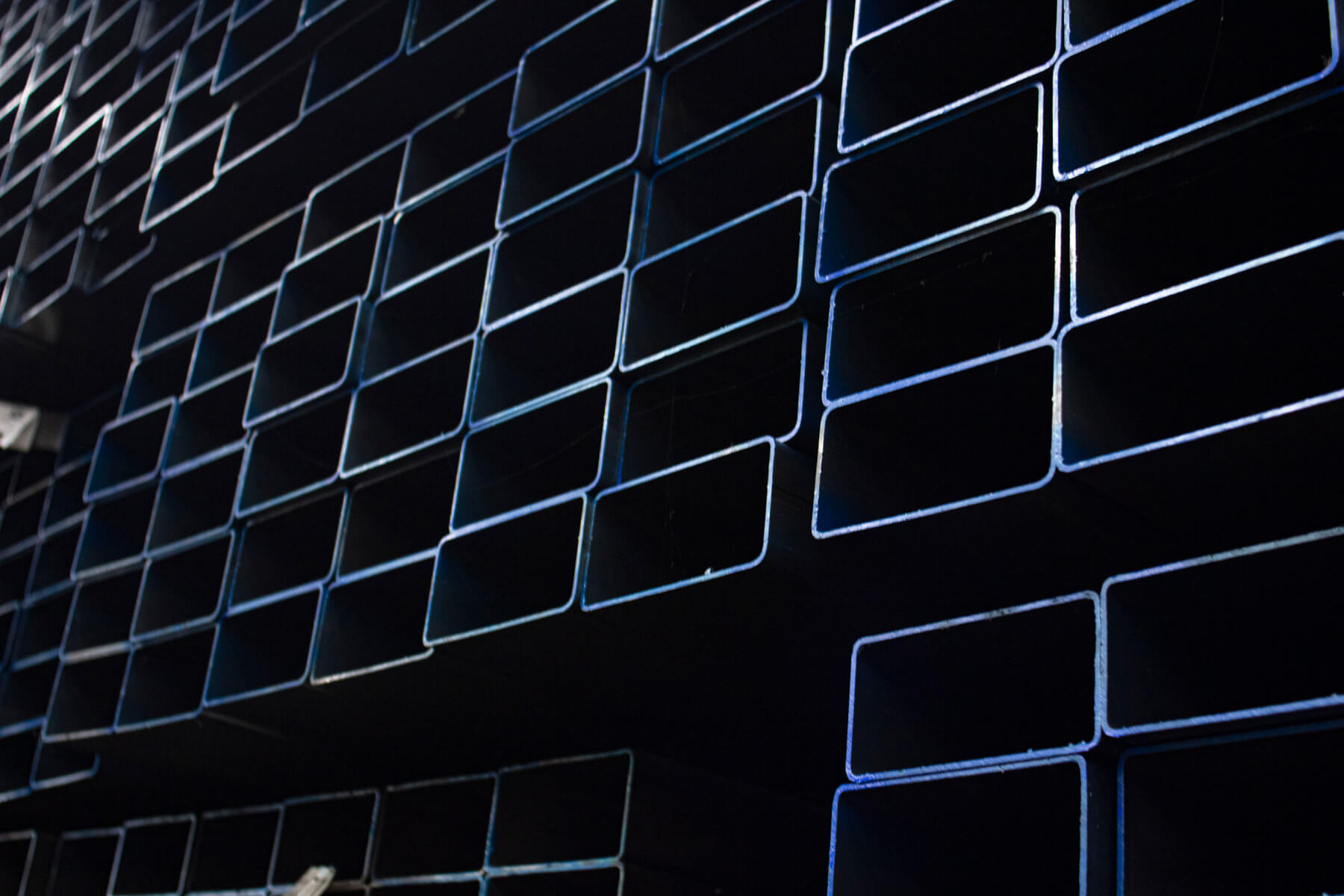

Acero EstructuralPerfilería estructuralHSS

HSS

Calibre Espesor
pulg. — mm.		 Kg. / hoja
3′x8′		 Kg. / hoja
3′x10′		 Kg. / hoja
4′x8′		 Kg. / hoja
4′x10′		 Kg. / hoja
5′x10′		 Kg. / hoja
5′x20′		 Kg. / hoja
6′		 Kg./m2
7 0.180 — 4.572 80.87 101.09 107.83 134.78 – – – 36.26
8 0.165 — 4.191 74.13 92.66 98.84 123.55 154.44 308.88 – 33.25
9 0.150 — 3.810 67.39 84.24 89.86 112.32 – – – 30.23
10 0.135 — 3.429 60.65 75.82 80.87* 101.09* 126.36 252.72 – 27.20
11 0.120 — 3.048 53.91 67.39 71.88* 89.86* 112.32 224.64 LE** 24.18
12 0.105 — 2.667 47.17 58.97 62.90* 78.62* 98.28 196.56 – 21.16
13 0.090 — 2.286 40.44 50.54 53.91 67.39 – – – 18.14
14 0.075 — 1.905 33.70 42.12 44.93* 56.16* 70.20 140.40 – 15.11
16 0.060 — 1.524 26.96 33.70 35.94 44.93 – – – 12.09
18 0.048 — 1.219 – – 28.75 35.94 – – – 9.67
DIMENSIONES EXTERIORES
pulg		 DIMENSIONES EXTERIORES
mm		 ESPESOR
pulg — mm		 PESO
Kg/m
4″ x 4″ 102 x 102 0.312 — 7.9
0.375 — 9.5		 22.13
25.74
5″ x 5 127 x 127 0.312 — 7.9
0.375 — 9.5		 28.52
33.44
6″ x 4″ 152 x 102 0.312 — 7.9
0.375 — 9.5		 28.52
33.44
6″ x 6″ 152 x 152 0.187 — 4.7
0.250 — 6.3
0.312 — 7.9
0.375 — 9.5
0.500 — 12.7		 21.62
28.36
34.75
40.98
52.46
8″ x 3″ 203 x 76 0.125 — 3.2
0.187 — 4.7		 13.61
20.00
8″ x 4″ 203 x 102 0.187 — 4.7
0.250 — 6.3
0.312 — 7.9
0.375 — 9.5
0.500 — 12.7		 21.64
28.36
34.75
40.98
52.46
8″ x 6″ 203 x 152 0.250 — 6.3
0.375 — 9.5		 33.44
48.52
8″ x 8″ 203 x 203 0.187 — 4.7
0.250 — 6.3
0.312 — 7.9
0.375 — 9.5
0.500 — 12.7
0.625 — 15.9		 29.34
38.52
47.54
56.07
72.79
88.52
10″ x 6″ 254 x 152 0.187 — 4.7
0.250 — 6.3
0.375 — 9.5
0.500 — 12.7		 29.34
38.52
56.23
72.79
10″ x 10″ 254 x 254 0.187 — 4.7
0.250 — 6.3
0.312 — 7.9
0.375 — 9.5
0.500 — 12.7
0.625 — 15.9		 36.89
48.69
60.16
71.31
92.95
113.6
12″ x 6″ 305 x 152 0.375 — 9.5 63.77
12″ x 8″ 305 x 203 0.250 — 6.3
0.375 — 9.5
0.500 — 12.7		 48.69
71.31
92.95
12″ x 12″ 305 x 305 0.250 — 6.3
0.312 — 7.9
0.375 — 9.5
0.500 — 12.7
0.625 — 15.9		 58.69
72.79
86.56
113.28
139.02
14″ x 14″ 356 x 356 0.312 — 7.9
0.375 — 9.5
0.500 — 12.7
0.625 — 15.9		 85.40
101.80
133.61
164.26
16″ x 16″ 406 x 406 0.312 — 7.9
0.375 — 9.5
0.500 — 12.7
0.625 — 15.9		 98.03
116.89
153.77
189.67
18″ x 18″ 457 x 457 0.500 — 12.7
0.625 — 15.9
0.750 — 19.05		 173.98
214.87
254.71
20″ x 20″ 508 x 508 0.500 — 12.7
0.625 — 15.9
0.750 — 19.05		 194.23
240.18
285.10
